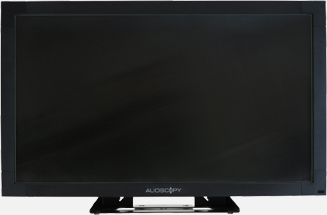

Alioscopy 3D HD 42"D LV
|
|
Datasheet |
|
|
 |
|
|
| Source display |
Delta S42BN |
| Display diagonal |
106.7 cm / 42" |
| Panel size |
[ W: 93 cm / 36.6" ] x [ H: 52.3 cm / 20.6" ] |
| Panel technology |
TFT |
| Optical component |
Alioscopy solid-glass lenticular lens (0.01 μm accuracy) |
| Required display resolution |
1920 x 1080 |
| Image dimension ratio |
16:9 |
| Number of view points |
8 |
| 2D Capacity |
Yes |
| Digital input |
DVI-D |
|
|
| Display dimension without stand |
[ W: 101.8 cm / 40.1" ] x [ H: 61.1 cm / 24.1" ] x [ D: 13.1 cm / 5.2" ] |
| Display dimension with stand |
[ W: 101.8 cm / 40.1" ] x [ H: 66.1 cm / 26" ] x [ D: 20.7 cm / 8.1" ] |
| Packaging dimensions |
[ W: 114 cm / 44.9" ] x [ H: 75.2 cm / 29.6" ] x [ D: 25 cm / 9.8" ] |
| Display weight without stand |
47.1 kg / 103.8 lbs |
| Display weight with stand |
52.1 kg / 114.9 lbs |
| Packaging weight |
58 kg / 127.9 lbs + optional wooden cradle: 10 kg / 22 lbs |
|
|
| Optimal viewing distance |
4.0 m / 13′ 1″ |
| Minimum viewing distance |
2.5 m / 8′ 2″ |
| Maximum viewing distance |
9.0 m / 29′ 6″ |
| Viewing angle |
100° |
| Sweet spot width |
52 cm / 20.5" |
| Number of sweet spots |
18 |
| Number of viewers |
1 to 40 |
|
|
| Pixel pitch |
0.4845 mm x 0.4845 mm |
| Contrast ratio |
3000:1 |
| Brightness |
500 cd/m² |
| Response time |
6.5 ms |
| Colours |
16.77 millions |
| Audio |
2 x 8W - Input: RCA (RL) + [3.5Φ Headphone Jack] - Output: RCA (RL) |
| Power requirements |
AC 100V - 240 V (50/60Hz) |
| Power consumption |
260 W |
| Power type |
Internal power supply |
| Operating temperature |
0 to 40 [°C] |
| Wall mount |
VESA 100 x 200 |
