Alioscopy 3D8K 31.5" Portrait & Landscape
Photographic Quality
The Alioscopy 8K range features two exceptional 31.5" monitors, one in portrait and the other in landscape orientation. All deliver a photographic-quality 3D experience, vividly rendering portraits, jewels, timepieces, leather goods, medical images, and CAD models.
Both models come in two brightness levels, 400 and 1500 nits, tailored for indoor or outdoor use. The 1500-nit high-brightness option also excels in Pepper's Ghost setups, creating striking three-dimensional illusions for augmented reality applications.
Designed for an optimal viewing distance of 1.5 meters, the Alioscopy 3D8K 31.5" monitors maintain impressive impact for viewers positioned anywhere between 1 and 5 meters.
Content can include 11, 22, 33, or 66 viewpoints, with 33 viewpoints offering an excellent compromise. This content can be generated via CGI platforms like Unity for interactive configurators, or captured through specialized photography and filming equipment for items such as jewelry and apparel.

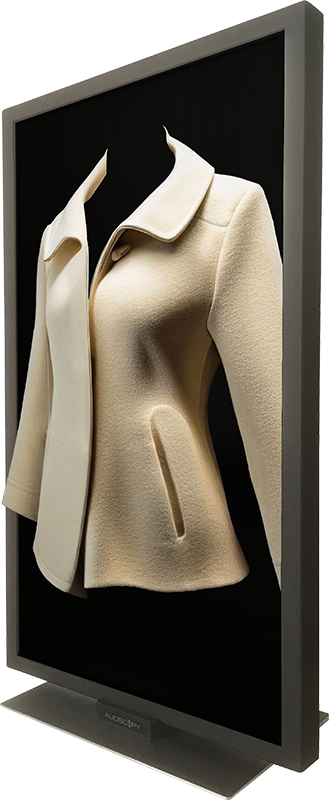

Alioscopy 3D8K 31.5" Portrait
Medical & Scientific Applications

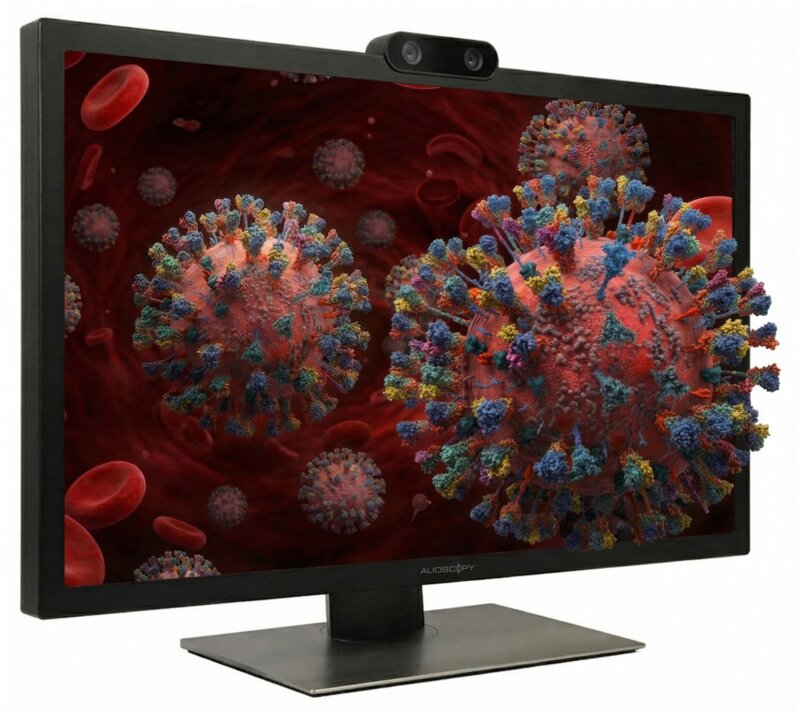

Alioscopy 3D8K 31.5" Landscape
The Alioscopy 3D8K 31.5" in landscape format addresses key needs in medical and scientific imaging. It enables intuitive comprehension of complex structures and facilitates volumetric image analysis and interpretation. Surgical robotics and 3D laparoscopy benefit from immediate, natural 3D vision without isolating the surgeon from their environment. Researchers can freely explore molecular structures, anatomical models, and volumetric data with clarity.
The landscape format is also well suited for CAD model visualization and DICOM imaging, visual communication, product configurators, and educational content.
Key Specifications
Request Full Datasheet| Display Size | 31.5" (80 cm diagonal) |
| Orientation | Portrait or Landscape (separate models) |
| Resolution | 8K Ultra HD (7680 × 4320) |
| Backlight Technology | LED, 400 or 1500 nits |
| 3D Technology | Glass lenticular lens manufactured by Alioscopy |
| Viewpoints | 2 with tracking, 11, 22, 33, or 66 without tracking |
| Viewing Mode | Multi-viewer / Single-viewer with tracking in Portal mode |
| Viewing distance in multi-viewer mode | ~1.5 m, possible from 1 to 5 m |
| Viewing distance in Portal mode | ~0.8 m, possible from 0.5 to 2 m |
| Certifications | CE (LVD & EMC), FCC, RoHS, PSE |
| Made in | France (EEA preferential origin) |
Frequently Asked Questions
What orientations are available for the 3D8K 31.5"?
The Alioscopy 3D8K 31.5" is available as two separate models, one in portrait and the other in landscape orientation. The portrait model is the only vertical 8K autostereoscopic display of this size. The landscape model is also available in Portal mode with tracking. It is then ideal for surgical robotics applications, applications that only have access to stereoscopic content, and all those that want to take advantage of the extraordinary immersive experience offered by ExoReality.
What applications is the Alioscopy 3D8K 31.5" designed for?
By definition, the portrait model is ideal for displaying portraits, whether fashion, hairstyling, make-up or jewellery, product photography, watches and fine jewellery, leather goods, perfume bottles, CAD or medical segmentation models, DICOM images, macro photographs of skin, tissues or minerals, and any detailed content requiring high-end volumetric rendering in vertical format. The landscape model addresses broadly the same needs. Certain medical, scientific or CAD imaging applications lend themselves more to the conventional landscape orientation, as do many visual communication, educational, cultural, simulation, 3D modelling, serious gaming or product configurator contents.
What are the brightness options?
Each model comes in two brightness levels: 400 nits for standard environments and 1500 nits for brightly lit spaces or outdoor applications. The 1500-nit version also excels in Pepper's Ghost setups, where high brightness is essential to create convincing three-dimensional illusions by reflection in a semi-transparent mirror.
How many viewpoints can the 3D8K 31.5" display?
Content can include 11, 22, 33 or 66 viewpoints. The 33-viewpoint option offers an excellent balance between parallax smoothness and perceived resolution. In Portal mode with tracking, only two viewpoints are needed, making all existing stereoscopic content compatible.
What is the optimal viewing distance for the 3D8K 31.5"?
The optimal viewing distance in multiscopic mode is 1.5 metres, but the display maintains impressive visual impact for viewers standing anywhere between 1 and 5 metres. In Portal mode, the viewing distance is approximately 0.8 metres, within a range of 0.5 to 2 metres.
How is content created for the 3D8K 31.5"?
Images can be generated in real time using 3D engines such as Unity, for interactive configurators for instance, or photographed and filmed with dedicated multi-view capture equipment, particularly for jewellery and fashion. 4D Gaussian Splatting technologies also make it possible to transform photographs or videos of a real object into a photorealistic 3D model explorable in real time. In Portal mode, any existing stereoscopic content can be used directly.
